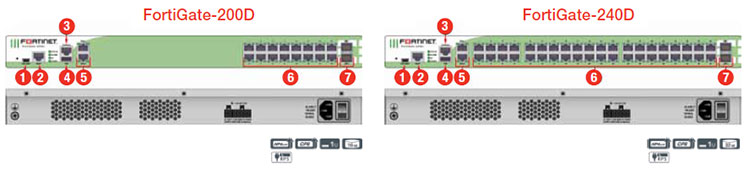

| FortiGate Model |
FortiGate-200D |
FortiGate-240D |
| 10/100/1000 WAN Interfaces (RJ45) |
2 |
2 |
| 10/100/1000 Internal Interfaces (RJ45) |
16 |
40 |
| GbE SFP DMZ Interfaces |
2 |
2 |
| USB (Client / Server) |
1/1 |
1/1 |
| Console (RJ45) |
1 |
1 |
| Local Storage |
16GB |
32GB |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) |
3 Gbps |
4 Gbps |
| Firewall Latency (64 byte UDP packets) |
2 μs |
6 μs |
| Firewall Throughput (Packets Per Second) |
4.5 Mpps |
6 Mpps |
| Concurrent Sessions (TCP) |
1.4 Million |
3.2 Million |
| New Sessions/Sec (TCP) |
77,000 |
77,000 |
| Firewall Policies (Max) |
10,000 |
10,000 |
| IPSec VPN Throughput (512 byte packets) |
1.3 Gbps |
1.3 Gbps |
| Gateway-to-Gateway IPSec VPN Tunnels |
2,000 |
2,000 |
| Client-to-Gateway IPSec VPN Tunnels |
5,000 |
5,000 |
| SSL-VPN Throughput |
400 Mbps |
400 Mbps |
| Concurrent SSL-VPN Users (Recommended Max) |
300 |
300 |
| IPS Throughput |
1.7 Gbps |
2.1 Gbps |
| Antivirus Throughput (Proxy Based / Flow Based) |
600 / 1,100 Mbps |
600 / 1,100 Mbps |
| Virtual Domains (Default / Max) |
10 / 10 |
| Max Number of FortiAPs |
32 |
| Max Number of FortiTokens |
1,000 |
| Max Number of Registered FortiClients |
2,000 |
| High Availability Configurations |
Active / Active, Active / Passive, Clustering |
| Height x Width x Length |
1.72 x 9.17 x 8.78 in (44 x 233 x 223 mm) |
1.50 x 8.50 x 6.18 in (38 x 216 x 157 mm) |
| Weight |
10.5 lbs (4.8 kg) |
| Form Factor |
Rack Mount, 1 RU |
| Power Required |
100 - 240 VAC, 50 - 60 Hz |
| Max Current |
110 V / 3 A, 220 V / 1.5 A |
| Power Consumption (AVG / Max) |
55 / 79 W |
80 / 98 W |
| Heat Dissipation |
270 BTU / h |
335 BTU / h |
| Operating Temperature |
32 - 104 °F (0 - 40 °C) |
| Storage Temperature |
-31 - 158 °F (-35 - 70 °C) |
| Humidity |
20 to 90% non-condensing |
| Compliance |
FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications |
ICSA Labs: Firewall, IPSec, IPS, Antivirus, SSL VPN |
